1228H - 2009 - 2T1824483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1228H - 2009 - 2T1824483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1228h_2t1824483_um9_deck_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 1228h_2t1824483_um9_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2009 - 2T1824483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram

Description

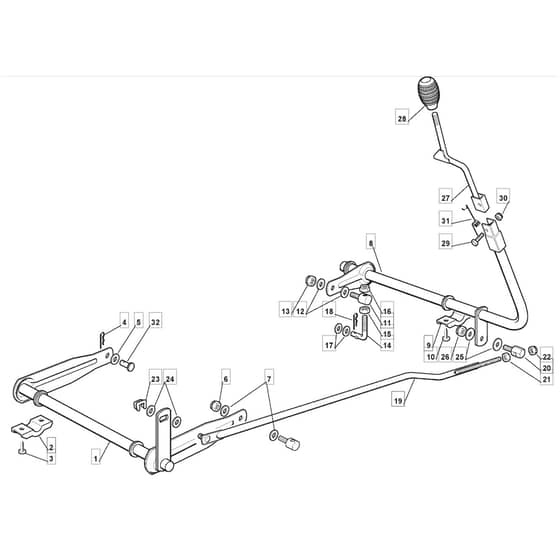

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1824483/UM9

	Part No.	Details
1	MO384001025/0 Available to backorder	Lifting Axle	£42.22 £35.18
3	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
4	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
6	MO112156602/0 In stock	Nut	£1.39 £1.16
7	MO325670008/1 In stock	Washer	£1.55 £1.29
8	MO384001005/2 Available to backorder	Lifting Axle	£33.79 £28.16
9	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
11	MO125510007/2 Available to backorder	Pin	£5.65 £4.71
14	MO125840003/2 Available to backorder	Tie Rod	£12.40 £10.33
15	MO112295200/0 In stock	Nut	£1.39 £1.16
17	MO322672150/0 Available to backorder	Antifriction Washer	£1.92 £1.60
19	MO184002089/1 Available to backorder	Rod	£38.00 £31.67
20	MO125510168/0 Available to backorder	Pin From S.N 19DA3RON003468	£4.50 £3.75
20	MO125510040/2 Available to backorder	Pin	£5.76 £4.80
21	MO112293200/0 In stock	Nut	£1.55 £1.29
23	MO112436050/0 In stock	Plate	£1.84 £1.53
25	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO384317065/1 Available to backorder	Lever	£15.49 £12.91
28	MO125394510/0 In stock	Knob	£4.24 £3.53
29	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
31	MO127430555/0 Available to backorder	Spring	£2.94 £2.45
32	MO127510114/0 Available to backorder	Front R.H Hook Deck Pin	£8.72 £7.27
