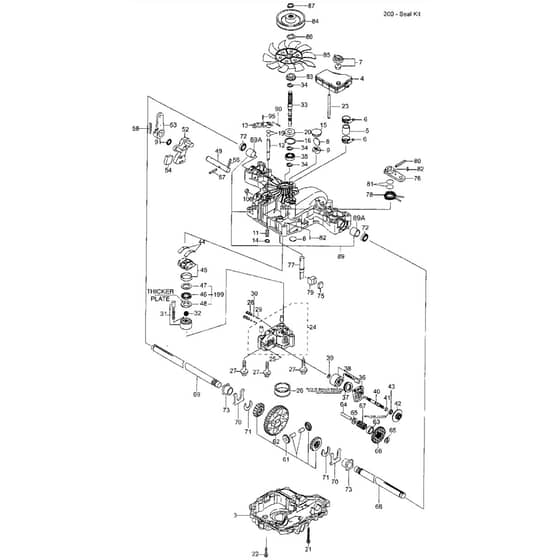

1228H - 2006 - 13-2642-16 - Mountfield Ride On Mower Kanzaki Transaxle K46T Diagram

Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2006

Model Type - F 72 Hydro

Art.N - 13-2642-16

Be the first to review this product

0 product questions

	Part No.	Details
4	TT1A646024460 Available to backorder	Reservoir Tank K46T	£42.48 £35.40
5	MO1139-1363-01 Available to backorder	Tube K46T	£8.90 £7.42
6	MO1139-1336-01 Available to backorder	Cobra Clip K46T	£6.76 £5.63
7	MO1139-1595-01 Available to backorder	Vent Valve Assy K46T	£17.40 £14.50
8	MO1139-1150-01 Available to backorder	Magnet K46T	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder K46T	£5.62 £4.68
11	MO1139-1347-01 Available to backorder	Spring K46T	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46T	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring K46T	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46T	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring K46T	£4.52 £3.77
19	MO1139-1117-01 Available to backorder	O-Ring K46T	£4.52 £3.77
20	MO1139-1119-01 Available to backorder	Seal 15357 K46T	£6.10 £5.08
21	MO1139-1295-01 Available to backorder	Screw K46T	£4.94 £4.12
24	MO1139-1593-01 Available to backorder	Center Case K46T	£1,185.12 £987.60
25	MO1139-1158-01 Available to backorder	Pin K46T	£4.52 £3.77
26	MO1139-1405-01 Available to backorder	Filter K46T	£22.76 £18.97
28	MO1139-1242-01 Available to backorder	Ids Valve K46T	£14.00 £11.67
29	MO1139-1243-01 Available to backorder	Spring K46T	£4.36 £3.63
30	TT168T2084770 Available to backorder	Filter K46T	£2.46 £2.05
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46T	£124.45 £103.71
32	MO1139-1245-01 Available to backorder	Pump Spring K46T	£4.81 £4.01
34	MO1139-1750-01 Available to backorder	Ring K46T	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing K46T	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46T	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46T	£48.10 £40.08
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy K46T	£229.15 £190.96
39	MO1139-1160-01 Available to backorder	Washer K46T	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft K46T	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring K46T	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear K46T	£23.20 £19.33
45	MO1139-1475-01 Available to backorder	Swash Plate K46T	£32.06 £26.72
56	MO1139-1355-01 Available to backorder	Cotter Pin K46T	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin K46T	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46T	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46T	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear K46T	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46T	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46T	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer K46T	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear K46T	£25.18 £20.98
68	MO1139-1344-01 Available to backorder	Axle Shaft-Rh K46T	£82.06 £68.38
69	MO1139-1345-01 Available to backorder	Axle Shaft-Lh K46T	£102.17 £85.14
70	MO1139-1078-01 Available to backorder	Thrust Washer K46T	£12.04 £10.03
71	MO1139-1163-01 Available to backorder	Ring K46T	£4.52 £3.77
72	MO1139-1080-01 In stock	Seal 19328 K46T	£13.30 £11.08
73	MO1139-1164-01 Available to backorder	Bushing K46T	£6.60 £5.50
75	MO1139-1260-01 Available to backorder	Brake Shoe K46T	£4.52 £3.77
76	MO1139-1261-01 Available to backorder	Brake Arm K46T	£10.04 £8.37
77	MO1139-1320-01 Available to backorder	Brake Shaft K46T	£47.80 £39.83
78	MO1139-1411-01 Available to backorder	Return Spring K46T	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator K46T	£5.62 £4.68
80	MO1139-1282-01 Available to backorder	Pin K46T	£5.04 £4.20
81	MO1139-1114-01 Available to backorder	O-Ring K46T	£4.81 £4.01
83	MO1139-1248-01 Available to backorder	Spline Collar K46T	£8.52 £7.10
84	MO1134-5821-01 Available to backorder	Pulley K46T	£38.00 £31.67
86	MO1139-1266-01 Available to backorder	Washer K46T	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring K46T	£4.97 £4.14
89	MO1139-1414-01 Available to backorder	Bushing - 89A K46T	£6.26 £5.22
91	TT1A646024440 Available to backorder	Seal Ring K46T	£7.32 £6.10
95	MO1139-1279-01 Available to backorder	Pin K46T	£4.52 £3.77
200	MO1139-1403-01 Available to backorder	Seal Kit	£188.96 £157.47
