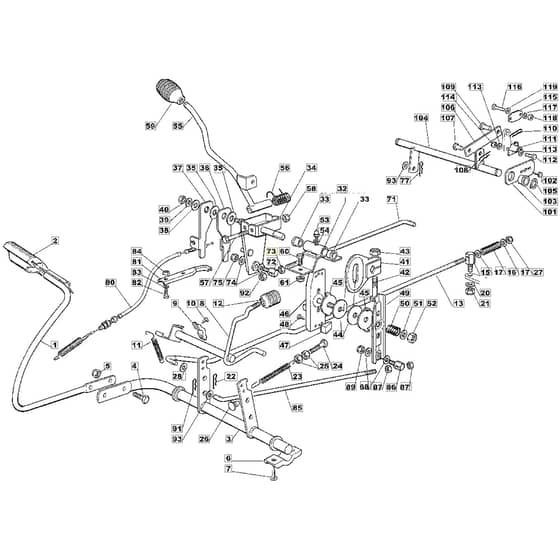

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2006

Model Type - F 72 Hydro

Art.N - 13-2642-16

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Available to backorder	Pedal	£23.65 £19.71
2	MO125110267/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO384001015/1 Available to backorder	Axle	£46.46 £38.72
4	MO112793301/0 In stock	Screw	£1.55 £1.29
6	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
7	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
8	MO384001011/2 Available to backorder	Axle	£12.95 £10.79
9	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
10	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
10	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
12	MO127395050/1 Available to backorder	Knob	£2.95 £2.46
15	MO125510067/1 Available to backorder	Pin	£4.37 £3.64
16	MO25430236/0 Available to backorder	Spring	£2.17 £1.81
16	MO125430236/1 Available to backorder	Spring	£1.55 £1.29
20	MO112523050/0 In stock	Washer	£1.55 £1.29
22	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
23	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
24	MO122943005/0 Available to backorder	Screw	£2.53 £2.11
26	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
27	MO112156602/0 Available to backorder	Nut	£1.40 £1.17
28	MO325670011/0 In stock	Antifriction Washer	£1.55 £1.29
32	MO384773568/1 Available to backorder	Bracket W.Bush Pos 33 incl.	£39.42 £32.85
32	MO384773568/0 Available to backorder	Stirrup Pos 33 incl. _ 1228H	£37.79 £31.49
33	MO127045080/0 Available to backorder	Bushing	£5.21 £4.34
34	MO384773561/1 Available to backorder	Control Lever Bracket	£43.49 £36.24
35	MO322672151/0 In stock	Antifriction Washer	£1.82 £1.52
36	MO327772101/0 Available to backorder	Clamp	£2.40 £2.00
37	MO327772103/0 Available to backorder	Clamp	£2.12 £1.77
38	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
39	MO112523060/0 In stock	Washer	£1.55 £1.29
40	MO9712-0831-02 Available to backorder	Nut	£5.39 £4.49
48	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
52	MO112155020/0 In stock	Nut	£1.69 £1.41
53	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
57	MO112692050/0 In stock	Screw	£1.82 £1.52
60	MO9997-0820-16 Available to backorder	Screw	£1.55 £1.29
61	MO112293201/0 In stock	Nut	£1.69 £1.41
83	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
83	MO112521360/0 In stock	Washer	£1.55 £1.29
84	MO112292102/0 In stock	Nut	£1.69 £1.41
87	MO112293200/0 In stock	Nut	£1.55 £1.29
89	MO112155010/0 In stock	Nut	£2.12 £1.77
92	MO112155000/0 In stock	Nut	£1.55 £1.29
102	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
105	MO112608900/0 Available to backorder	Seeger	£1.33 £1.11
114	MO112154510/0 In stock	Nut	£1.55 £1.29
117	MO112581100/0 Available to backorder	Lock Washer	£1.33 £1.11
118	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
119	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
