1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Controls Diagram

Name: 1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Controls Diagram
SKU: 1228h_13_2642_13_controls-group
Price: 1.29 GBP
Availability: InStock

Part No. 1228h_13_2642_13_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1228H - 2003 - 13-2642-13 - Mountfield Ride On Mower Controls Diagram

Description

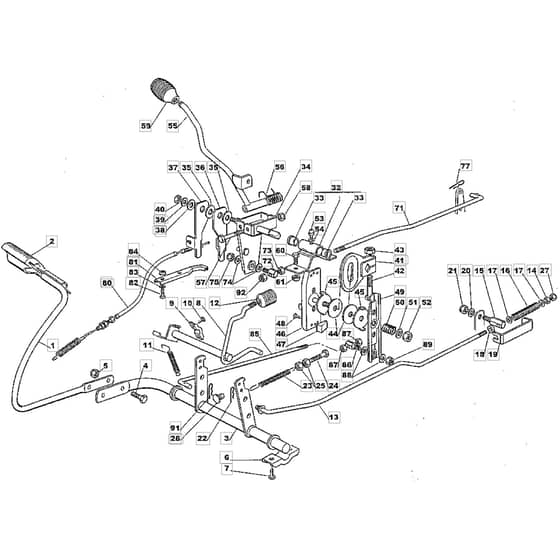

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2003

Model Type - F 72 Hydro

Art.N - 13-2642-13

	Part No.	Details
1	MO384503001/0 Available to backorder	Brake Pedal	£23.65 £19.71
2	MO125110267/0 Available to backorder	Pedal Cover	£3.79 £3.16
3	MO384001015/1 Available to backorder	Pedal Shaft	£46.48 £38.73
4	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
6	MO327546015/2 Available to backorder	Clamp	£1.55 £1.29
7	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
8	MO384001011/2 Available to backorder	Parking Brake Shaft	£12.94 £10.78
9	MO325547049/0 Available to backorder	Clamp	£3.10 £2.58
10	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
11	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
12	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
13	MO127034060/0 Available to backorder	Rod	£32.32 £26.93
15	MO127510103/0 Available to backorder	Pivot Bolt	£4.24 £3.53
16	MO25430236/0 Available to backorder	Spring	£1.55 £1.29
17	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
18	MO122171001/0 Available to backorder	Spacer	£1.97 £1.64
19	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
21	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
52	MO112155020/0 In stock	Nut	£1.70 £1.42
53	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
54	MO112521360/0 In stock	Washer	£1.55 £1.29
60	MO9997-0820-16 In stock	Screw	£1.55 £1.29
61	MO112293201/0 In stock	Nut	£1.70 £1.42
84	MO112292102/0 In stock	Nut	£1.70 £1.42
87	MO112293200/0 In stock	Nut	£1.55 £1.29
92	MO112155000/0 In stock	Use 112155000.0	£1.55 £1.29
