Description

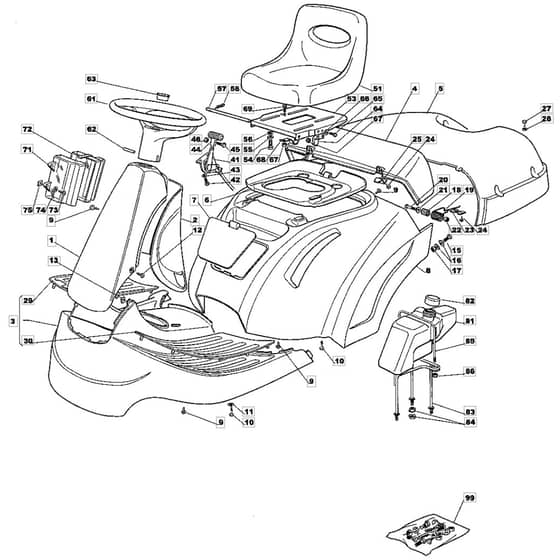

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2003

Model Type - F 72 Hydro

Art.N - 13-2642-13

Ref. Img. Part No. Details
  2 Cover.Rear-Red
Cover.Rear-Red
MO327600091/1 Out of stock
Cover.Rear-Red
£23.11 £19.26

  4 Grass Catcher Cover.Fixed-Red
Grass Catcher Cover.Fixed-Red
MO327110302/3 Out of stock
Grass Catcher Cover.Fixed-Red
£43.33 £36.11

  5 Grass Catcher Cover.Mobile-Red
Grass Catcher Cover.Mobile-Red
MO327110303/2 Out of stock
Grass Catcher Cover.Mobile-Red
£73.14 £60.95

  6 Engine Cover (Black)
Engine Cover (Black)
MO327110306/2 Out of stock
Engine Cover (Black)
£19.37 £16.14

  7 Front Cover-Red
Front Cover-Red
MO327109501/2 Out of stock
Front Cover-Red
£11.38 £9.48

  8 Wheels Cover Red
Wheels Cover Red
MO384110170/0 Out of stock
Wheels Cover Red
£203.17 £169.31

  9 Screw
Screw
MO112735402/0 In stock
Screw
£1.49 £1.24

  10 Screw
Screw
MO112735410/0 Out of stock
Screw
£1.49 £1.24

  12 Screw
Screw
MO112735598/0 Out of stock
Screw
£1.78 £1.48

  13 Lock Plate
Lock Plate
MO112437503/0 Out of stock
Lock Plate
£1.90 £1.58

  15 Screw
Screw
MO112791200/1 Out of stock
Screw
£1.34 £1.12

  16 Washer
Washer
MO112523040/0 In stock
Washer
£1.63 £1.36

  18 Bushing
Bushing
MO127047003/0 Out of stock
Bushing
£1.63 £1.36

  19 Spring
Spring
MO127430551/1 Out of stock
Spring
£2.70 £2.25

  20 Screw
Screw
MO112691200/0 Out of stock
Screw
£1.80 £1.50

  21 Washer
Washer
MO112523070/0 Out of stock
Washer
£1.49 £1.24

  22 Lock Nut
Lock Nut
MO112155000/0 Out of stock
Lock Nut
£1.63 £1.36

  23 Plate
Plate
MO327546001/0 Out of stock
Plate
£1.36 £1.13

  25 Plate
Plate
MO327546003/0 Out of stock
Plate
£1.49 £1.24

  27 Screw
Screw
MO112729601/1 Out of stock
Screw
£1.48 £1.23

  28 Washer
Washer
MO112521360/0 In stock
Washer
£1.63 £1.36

  29 Footboard Cover-R
Footboard Cover-R
MO127110304/0 Out of stock
Footboard Cover-R
£9.48 £7.90

  30 Footboard Cover-L
Footboard Cover-L
MO127110305/1 Out of stock
Footboard Cover-L
£9.48 £7.90

  41 Throttle Control
Throttle Control
MO184000250/1 Out of stock
Throttle Control
£28.20 £23.50

  42 Screw
Screw
MO112788512/0 Out of stock
Screw
£1.49 £1.24

  43 Washer
Washer
MO112581200/0 Out of stock
Washer
£1.90 £1.58

  44 T-Handle
T-Handle
MO125394501/0 Out of stock
T-Handle
£1.49 £1.24

  46 Nut
Nut
MO112290800/0 Out of stock
Nut
£1.49 £1.24

  53 Seat Plate
Seat Plate
MO325547033/1 Out of stock
Seat Plate
£33.02 £27.52

  54 Screw
Screw
MO9997-0820-16 Out of stock
Screw
£1.63 £1.36

  55 Washer
Washer
MO112583500/0 Out of stock
Washer
£1.49 £1.24

  56 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  57 Pin
Pin
MO127864052/1 Out of stock
Pin
£6.37 £5.31

  58 Hair Pin
Hair Pin
MO124487997/0 Out of stock
Hair Pin
£1.49 £1.24

  61 Steering Wheel
Steering Wheel
MO125961217/1 Out of stock
Steering Wheel
£94.81 £79.01

  62 Locating Pin
Locating Pin
MO112620300/0 Out of stock
Locating Pin
£1.75 £1.46

  63 Cap
Cap
MO325120230/0 Out of stock
Cap
£2.98 £2.48

  64 Cam
Cam
MO327063021/1 Out of stock
Cam
£7.20 £6.00

  65 Screw
Screw
MO112789100/0 Out of stock
Screw
£1.49 £1.24

  66 Washer
Washer
MO112523020/0 Out of stock
Washer
£1.49 £1.24

  67 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  68 Spring
Spring
MO125430223/2 Out of stock
Spring
£5.96 £4.97

  69 Screw
Screw
MO112789000/0 Out of stock
Screw
£1.49 £1.24

  71 Guard-Upper
Guard-Upper
MO125600020/0 Out of stock
Guard-Upper
£11.92 £9.93

  72 Guard-Lower
Guard-Lower
MO125600021/1 Out of stock
Guard-Lower
£12.86 £10.72

  73 Screw
Screw
MO112728460/0 Out of stock
Screw
£1.49 £1.24

  74 Washer
Washer
MO112521320/0 Out of stock
Washer
£1.49 £1.24

  75 Lock Plate
Lock Plate
MO112437502/0 Out of stock
Lock Plate
£1.49 £1.24

  81 Fuel Tank
Fuel Tank
MO127733004/0 Out of stock
Fuel Tank
£88.04 £73.37

  82 Tank Cap
Tank Cap
MO125795000/1 In stock
Tank Cap
£7.08 £5.90

  84 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  86 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.63 £1.36


Description

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2003

Model Type - F 72 Hydro

Art.N - 13-2642-13
