1228H - 2002-2007 - 299991133/MOU - Mountfield Ride On Mower Seat Diagram

Description

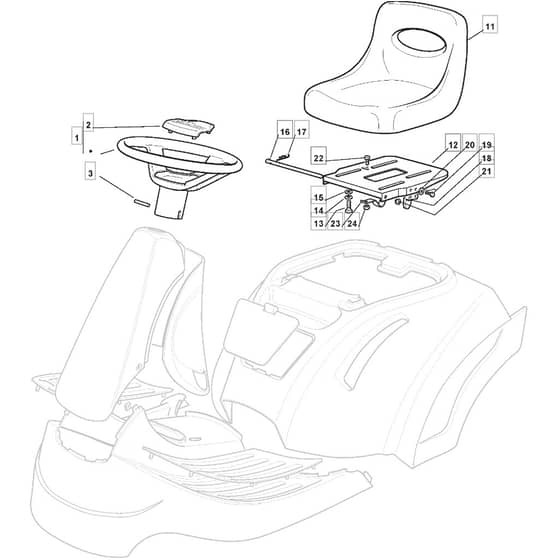

Mountfield 1228H Parts Diagram

Product Name - 1228 H

Model Year - 2002-2007

Model Type - F 72 Hydro

Art.N - 299991133/MOU

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580501/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
11	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
12	MO325547033/1 Available to backorder	Seat Plate To 31-8-2014	£39.42 £32.85
12	MO325547033/2 Available to backorder	Seat Plate From 01-9-2014	£39.42 £32.85
13	MO112793101/0 In stock	Screw	£1.55 £1.29
14	MO112583500/0 In stock	Grower	£1.55 £1.29
15	MO112523060/0 In stock	Washer	£1.55 £1.29
16	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.64 £5.53
17	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
18	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
19	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
20	MO112523020/0 In stock	Washer	£1.55 £1.29
22	MO125430223/2 Available to backorder	Spring From 01-9-2003	£6.19 £5.16
23	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
24	MO112154330/0 In stock	Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55 £1.29
