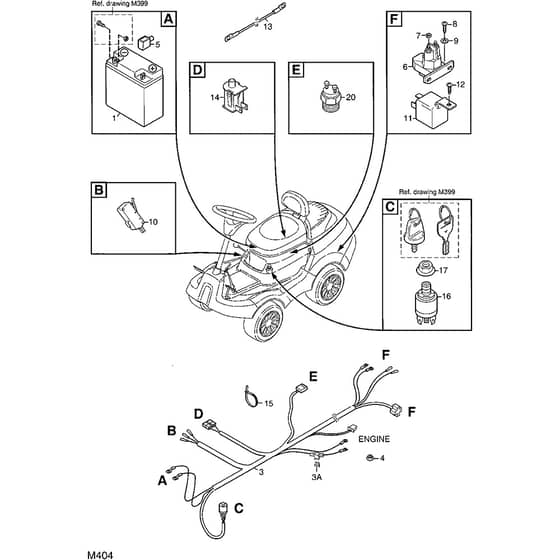

1125M - 2008 - 13-2412-91 - Mountfield Front Mower Electric Equipment Diagram

Name: 1125M - 2008 - 13-2412-91 - Mountfield Front Mower Electric Equipment Diagram
SKU: 1125m_13_2412_91_electric_equipment-group
Price: 1.16 GBP
Availability: InStock

Part No. 1125m_13_2412_91_electric_equipment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1125M - 2008 - 13-2412-91 - Mountfield Front Mower Electric Equipment Diagram

Description

Mountfield 1125M Parts Diagram

Product Name - 1125M

Model Year - 2008

Model Type -

Art.N - 13-2412-91

Engine Model -

	Part No.	Details
3	MO1134-6498-01 Available to backorder	Harness	£146.42 £122.02
3	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow (3A)	£1.39 £1.16
4	MO112292102/0 In stock	Nut	£1.70 £1.42
5	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.86 £7.38
6	MO118736112/0 In stock	Solenoid	£38.00 £31.67
7	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
9	MO112523060/0 In stock	Washer	£1.55 £1.29
10	MO9400-0360-01 Available to backorder	Microswitch	£8.18 £6.82
11	MO1134-2871-03 Available to backorder	Relay	£43.63 £36.36
12	MO9838-9516-12 Available to backorder	Screw	£2.11 £1.76
13	MO1134-4702-01 Available to backorder	Cable (+)	£24.85 £20.71
14	MO1134-3156-02 Available to backorder	Switch	£46.48 £38.73
15	MO9579-0003-00 Available to backorder	Cable Holder	£2.11 £1.76
16	MO1134-4093-01 In stock	Ignition Switch	£64.75 £53.96
17	MO1134-4749-01 Available to backorder	Nut	£5.65 £4.71
20	MO1134-7381-01 Available to backorder	Neutral Switch	£50.69 £42.24
